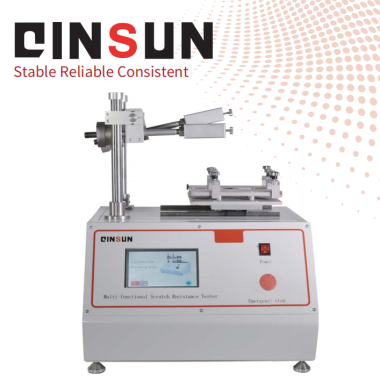

Reciprocating Wear Tester

Standards

• ASTM F2496: Scratch hardness and adhesion testing for prints/coatings.
• ISO 1518-1 & -2: Scratch resistance determination for paints/varnishes (constant/variable loading).
• GME 60248: Scratch resistance for automotive interiors and textiles.
• D44 1221: Abrasion resistance for fluff surface materials.
• D14 1055-2004 & D42 1775-03-2001: Wear resistance for organic coatings and plastic parts.

Product Advantages

• Dual-Station Efficiency: Simultaneous testing on two independent workstations accelerates workflow and reduces downtime.
• Versatile Applications: Ideal for coatings, plastics, automotive interiors, fabrics, and electronic components.
• Precision Control: Adjustable stroke (6–120mm), speed (1–100 cycles/min), and pressure (1N–24N) ensure tailored testing.
• User-Friendly Interface: LCD screen with real-time parameter display and programmable settings for speed, cycles, and stroke.
• Modular Design: Interchangeable friction heads (CS-10, H-18) and weights accommodate diverse testing requirements.
• Lever-Balanced Accuracy: Maintains consistent surface load via counterweight-equipped test arms, ensuring repeatability.
• Adjustable Height: Abrasive/load rack adapts to samples of varying thicknesses for universal compatibility.

Product Features

• Dual Testing Stations: Independent operation with shared control panel for parallel sample evaluation.
• LCD Control System: Intuitive interface for setting cycles (1–999,999), stroke length, and speed; displays real-time progress.
• Lever-Balance Mechanism: Precision-engineered test arms with adjustable weights (1N, 2N, 2.5N, 5N, 10N, 24N) for ASTM/ISO compliance.
• Interchangeable Friction Heads: Includes semicircular (R18) and flat abrasion heads for material-specific wear simulation.
• Height-Adjustable Rack: Accommodates samples up to 120mm thick with easy-to-use locking mechanisms.
• Comprehensive Kit: Includes brush, sandpaper, stainless-steel abrasive fixings, and spare parts for seamless maintenance.

Technical Parameters
