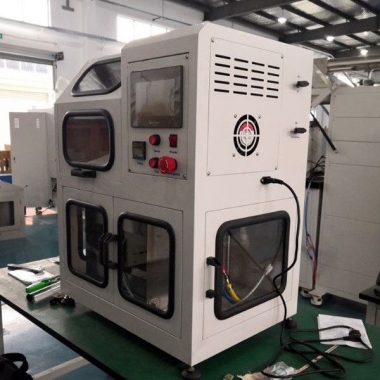

Molten Metal Splash Impact Tester

Product Introduction：

Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.

Features：

Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.

Senor for measuring the temperature linked to a recording device.

Holding frame and counterweights for the test specimen.

Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.

Needle valves adjust the O2 and acetylene flow rate.

LCD Screen display and control the motor speed.

Standard：

AQ 6103

ISO 9150:1988

CSN EN 348:1992

GB 8965.2:2009

GB/T 17599:1998
