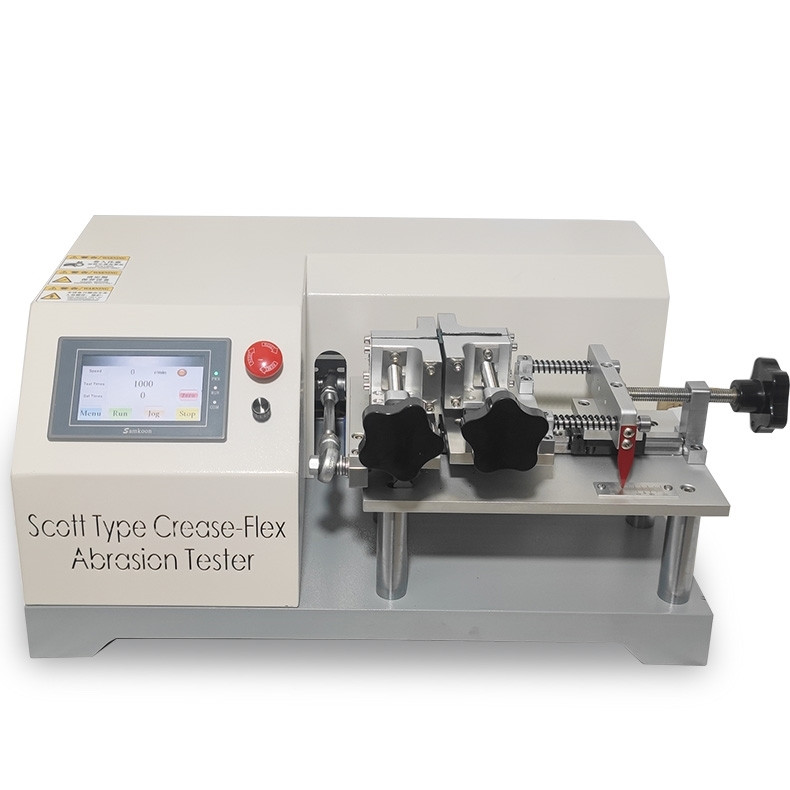

Why Choose the Scott Flex Tester?
- Global Compliance: Aligned with automotive OEM specifications (e.g., Volkswagen PV 1303) and aerospace standards (EN 2393).
- Cost-Effective: High-throughput design (up to 15 samples/hour) reduces per-test costs.
- Customizable: Adapt protocols for plastics, rubber, composites, and textiles.
- After-Sales Support: 24/7 technical assistance, 1-year warranty, and free software updates.
Ideal Applications
- Plastics Industry: Validate flexural modulus of PP, PE, and engineering polymers.
- Rubber Manufacturing: Test fatigue resistance of seals, gaskets, and hoses.
- Textile Composites: Evaluate crease recovery in technical fabrics.
- Automotive Components: Assess dashboard and interior trim durability.
Standard Compliance
The Scott Flex Tester is engineered to meet stringent international standards, including ASTM D5279, ISO 178, and GB/T 9341, ensuring accurate evaluation of material flexural properties under repetitive stress. It is widely adopted in industries such as plastics, rubber, textiles, and composites, where material resilience is critical.
Product Advantages
- Unmatched Precision:
- High-resolution load cell (±0.1N accuracy) and linear encoder track displacement for repeatable, laboratory-grade results.
- Versatile Testing Modes:
- Supports three-point bend, four-point bend, and cyclic fatigue tests to simulate real-world stress conditions (e.g., material creasing, component flexing).
- User-Centric Design:
- 7-inch touchscreen interface with multilingual support (English, Spanish, German, Chinese) and preloaded test templates for plastics, rubber, and composites.
- Robust Engineering:
- Stainless-steel frame and corrosion-resistant components ensure durability in high-volume labs.
- Safety & Efficiency:
- Automatic sample clamping, emergency stop, and overload protection prevent accidents and errors.
Product Features
- Adjustable Parameters:
- Flexural speed: 1–500 mm/min (programmable).
- Span length: 50–300mm (customizable).
- Load capacity: 0–5000N (adjustable).
- Data Management:
- Built-in USB/Wi-Fi for real-time data export; compatible with Excel, PDF, and CSV formats.
- Cloud integration for remote monitoring and batch analysis.
- Modular Design:
- Quick-change clamps for flat, curved, or irregular-shaped specimens (plastic sheets, rubber profiles, textile composites).
- Environmental Control (Optional):
- Pair with a temperature/humidity chamber (-20°C to +80°C, 20–95% RH) for extreme-condition testing.
- Low Maintenance:
- Self-lubricating bearings and dust-proof enclosure minimize calibration needs.
Technical Parameters
| Specification | Details |
|---|
| Load Capacity | 0–5000N (adjustable) |
| Flexural Speed | 1–500 mm/min |
| Span Length | 50–300mm (adjustable) |
| Sample Thickness | Up to 50mm |
| Power Supply | 220V/110V ±10%, 50/60Hz, 1.5kW |
| Dimensions | 700(L) × 500(W) × 1300(H) mm |
| Weight | 180 kg (net) |
| Certifications | CE, ISO 9001, RoHS |
| Data Output | USB, Wi-Fi, Ethernet |
| Control System | PLC with touchscreen HMI |
