Intramedullary Nails Four - point Bending Fatigue Tester

Standard

YY/T 0591-2011: Chinese standard specifying bending fatigue test methods for intramedullary nails and locking screws, including load application, cycle counting, and failure criteria.

ASTM F1264: International standard covering fatigue testing of intramedullary fixation devices, with protocols for sinusoidal loading at 5Hz–20Hz frequencies.

Product Advantages

Precision Fatigue Testing:

Electromagnetic servo-controlled loading system ensures sinusoidal force application with ±0.5% accuracy, adhering to ASTM F1264’s frequency and load requirements.

Adjustable R-ratio (0.1–0.9) and load range (100 N–10.000 N) for versatile testing scenarios.

Customized Fixturing:

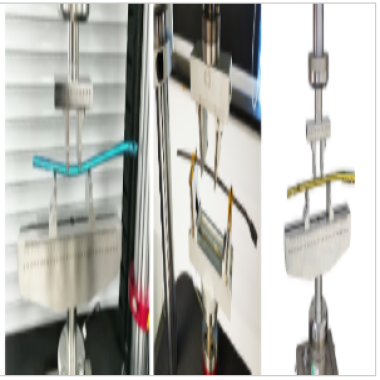

Modular four-point bending clamps with interchangeable roller diameters (8–16mm) and contour-matching designs to accommodate diverse nail diameters and lengths.

Anti-slip mechanisms and specimen alignment guides for consistent results.

Advanced Data Acquisition:

Real-time monitoring of cycles, load, and displacement with 5000Hz sampling rate.

Automatic calculation of key parameters: fatigue life (N cycles to failure), fatigue strength (S-N curve generation), and crack initiation points.

User-Centric Design:

Intuitive software with preloaded SOPs for YY/T 0591 and ASTM F1264 compliance.

Multi-language interface (English/Chinese/Spanish) and exportable reports (PDF/Excel/CSV).

Durability & Safety:

Corrosion-resistant steel frame and overload protection system for long-term reliability.

Low-noise operation (<65 dB) suitable for laboratory environments.

Product Features

Load Capacity: 100 N–10.000 N (axial) / 50–500 Nm (torsional).

Frequency Range: 0.01–20 Hz (adjustable for static/dynamic tests).

Temperature Control: Optional environmental chamber (-20°C to +150°C) for simulating physiological conditions.

Software Suite:

Customizable test profiles with automated pass/fail criteria.

21 CFR Part 11 compliance for audit trails and electronic signatures.

Calibration: NIST-traceable certification included, with annual recalibration available.

Technical Parameters

Accessories (Included/Optional)

Standard Kit:

Four-point bending clamps (8mm, 12mm, 16mm rollers).

Calibration weights and torque wrench.

Test control software with preloaded SOPs.

Optional Upgrades:

Axial-torsional load frame (for combined loading tests).

High-temperature chamber (for thermal fatigue testing).

Custom fixturing for pediatric/specialized intramedullary nails.

Remote diagnostics and preventive maintenance package.
