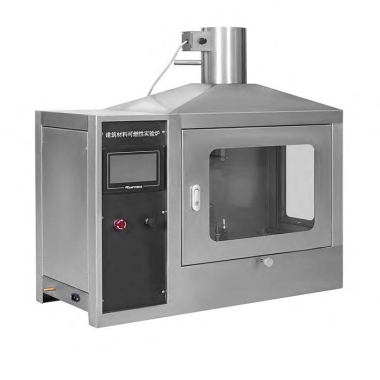

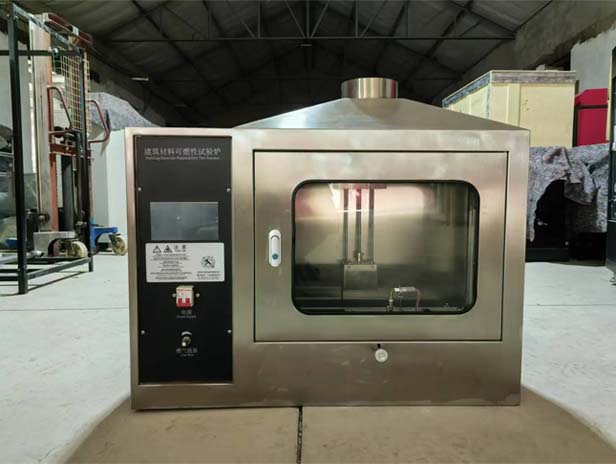

Building Material Flammability Test Furnace

Product Introduction:

Touch screen control building materials flammability test furnace adopts stainless steel box, is in the old JCK-2 products based on the new touch screen control sample controlled automatic lifting, Bunsen lamp can adjust the function of the upgrade product, is strictly in accordance with the national standard GB8626-2007 and the production of high configuration building materials combustion grade test instrument.

Building materials flammability test furnace is in the normal combustion environment, with a small flame directly impact vertically placed samples to determine the flammability of building products Building materials flammability test furnace using the German KLEINBRENNER(Kleinbrenner) principle, in the vertical direction of the small flame direct impact, It is used to determine the combustion performance of Class B building materials (that is, it is used to determine the combustion performance of building materials/flame retardant grade B)。

Meet the standard:

EN ISO11925-2:2002E "Test Method for Flammability of Building Materials"

GB/T8626-2007 "Combustibility test Method for Building Materials"

Parameters:

Product Features:

It is ergonomically designed and operated. All tests are completed by touch screen operation. The degree of automation is high. The results of previous tests can be stored and the previous test data can be read.

The servo motor driven sample rack can be controlled to automatically lift;

Bunsen burner can be adjusted in advance and retreat;

1.5mm stainless steel plate case;

2 fan steel heat-resistant glass door double angle observation test, double (with lock) convenient and practical

High-pressure automatic ignition, durable combustion;

The ignition source can be automatically tilted by 45 degrees;

The flame height is adjusted by a precision regulating valve;

The sample holder can be moved up and down and back and forth;

Equipped with two sample holders.

Flame measurement scale;

High degree of automation, accurate and easy to operate experimental data;

Box size: w*d*h835*400*815mm

Material: 1.5mm stainless steel

The bottom of the box is a flat natural vent, and the vent is composed of a 5cm*5cm square vent (a true 1.5mm thick steel vent, 50mm high) to keep the airflow through.

Workmanship, true solderless process

Touch the display:

Size: 7 inches Effective display size Length 15.5cm Width 8.6cm;

Resolution: 800*480

Communication interface RS232, 3.3V CMOS or TTL, serial port mode

Storage capacity: 1G

Use pure hardware FPGA driver display, “zero” startup time, run on power

Using M3+FPGA architecture, M3 is responsible for instruction parsing, FPGA focuses on TFT display, speed and reliability are leading the same scheme

The main controller adopts a low-energy processor and automatically enters the energy-saving mode.
