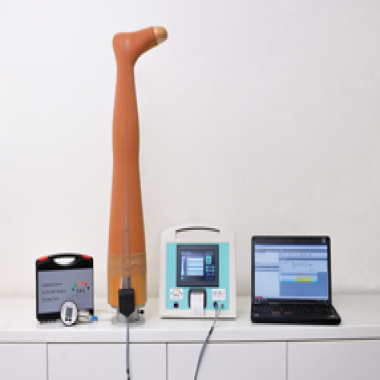

MST Medical Compression Stocking Tester

I. Product Overview

The MST Medical Compression Stocking Tester is a specialized instrument designed to evaluate the compression performance, elasticity, and durability of medical-grade compression stockings. It ensures compliance with healthcare standards by quantifying pressure distribution, hysteresis loss, and fabric resilience under repeated stress cycles.

• Type: Automated textile testing system for medical compression wear
• Key Metrics:
  • Compression Pressure Range: 15–50 mmHg (adjustable)
  • Pressure Accuracy: ±1 mmHg (ISO 13994 standard)
  • Elastic Recovery Rate (%): 95% min (AATCC 139)
• Sample Size: 30×300mm (calf segment simulation)
• Applications: Garment manufacturing, clinical research, quality assurance

II. Technical Specifications

Parameter	Specifications
Pressure Measurement	Capacitive sensor array (0.1 mmHg resolution)
Test Modes	Static pressure (1-minute hold) / Dynamic cyclic loading (10–100 cycles)
Sample Clamping	Adjustable vacuum chuck (5–50 N grip force)
Data Output	Pressure-time curve + CSV export
Power Supply	220V/50Hz, 0.8kW
Dimensions	600×400×800mm (L×W×H)

III. Key Features

• Dual Test Modes:
  • Static Mode: Measures initial compression pressure
  • Dynamic Mode: Simulates walking motion (5–120 steps/min)
• Advanced Analysis:
  • Pressure gradient mapping (ankle to knee)
  • Hysteresis loss calculation (ΔP vs cycles)
  • Real-time fabric strain visualization
• Compliance:
  • ISO 13994 (Medical compression garments)
  • AATCC 139 (Textile elasticity)
  • YY/T 0561 (Chinese medical hosiery standard)

IV. Applications

1. Quality Control: Batch testing of graduated compression stockings
2. R&D: Developing pressure-mapping hosiery for lymphedema
3. Clinical Research: Validating therapeutic compression levels
4. Forensic Analysis: Evaluating garment failure in patient care

Standard Operation Workflow:

1. Sample Preparation: Cut 30×300mm specimens from sock/tube
2. Clamping: Secure sample in vacuum chuck with 20 N force
3. Parameter Setup: Select test mode (static/dynamic) and cycle count
4. Testing: Run pressure cycle (10–100x) with real-time monitoring
5. Analysis: Generate pressure distribution heatmaps

Safety Precautions:

• Avoid contact with sharp clamps during loading
• Use medical-grade gloves when handling used samples
• Calibrate sensors monthly per ISO 17025

* ISO 17025-calibrated pressure sensors * Medical-grade silicone clamps (latex-free) * Automated zero-drift compensation * Includes 5-year sensor calibration service * Compact design for clinic/lab use ​**Technical Highlights**​ - ±0.5 mmHg pressure measurement accuracy (AATCC 139 validated) - 100-cycle fatigue testing mode - Pressure gradient color mapping - WiFi data export to HIPAA-compliant platforms - CE/IECEx certified for medical environments
