Rubber Rebound elasticity tester

Rubber elasticity tester, Rubber strikes the resilience elasticity tester for testing vulcanized  rubber, experiments, moving iron bars, iron bars so that the end position in the scale of  100. and then the iron bar to fall freely read the fourth, five or six times during the height of  spring back against average.

Applications

Used for resilience testing of vulcanized rubber

Standards

ASTM D2632-15(2024)：Standard Test Method for Rubber Property—Resilience by Vertical Rebound

Features

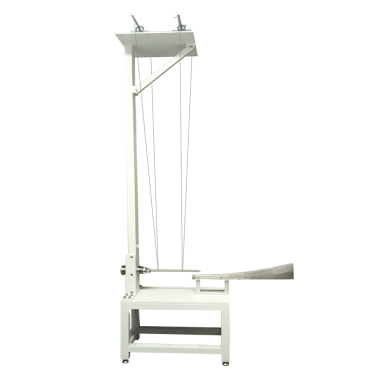

Device Structure: column, specimen holder, frame, dropping, impact head, dials.

Rubber elasticity tester / Rubber impact resilience tester is mainly made by the base unit and which can read head impact rebound height device component, wherein the base unit sturdy, heavy impact to support the head and the test piece.

In order to adjust and test equipment inspection, the instrument will be able to stand the impact head and made into a detachable device.

The impact head: impact head is to use four lines hanging in places overhanging diameter 2000mm 12.50 ± 0.05mm, length 356mm, the quality of 0.35 ± 0.01kg iron rods. To fall from the high gravity at 100mm as impact energy, the fight against iron bars to end hemispherical surface.

Dial: In order to directly read resiliency, dial scale values are displayed (resilience straightforward reading scale). Interval scale using the horizontal direction of seeking to retrieve flexibility required conversion table or conversion formula.

Technical Parameters

Accessoriess

The experimental setup mainly consists of a base and a device for reading the rebound height of the impact head. The base is sturdy and heavy to support the impact head and test piece. For adjustment and inspection of the setup, the impact head and base can be detached.

Impact Head: The impact head is an iron rod with a vertical diameter of 12.50 ± 0.05 mm, a length of approximately 356 mm, and a mass of 0.35 ± 0.01 kg, suspended at a height of 2000 mm by four suspension lines. The impact energy is the force of gravity falling from a height of 100 mm. The striking end of the iron rod is hemispherical.

Scale: To directly read the rebound height, the scale displays the value (direct reading of the rebound rate). When using horizontally spaced graduations to calculate the rebound height, a conversion table or a different calculation formula is required.

Test Procedures

1. Sample Preparation

The sample surface should be flat and free of defects to ensure the accuracy of the test results.

2. Environmental Control

The temperature and humidity of the testing environment should meet the standard requirements to avoid the influence of environmental factors on the results.

3. Equipment Calibration

The equipment should be calibrated regularly to ensure testing accuracy.

4. Safe Operation

Equipment safety regulations should be followed during operation to avoid accidents.
